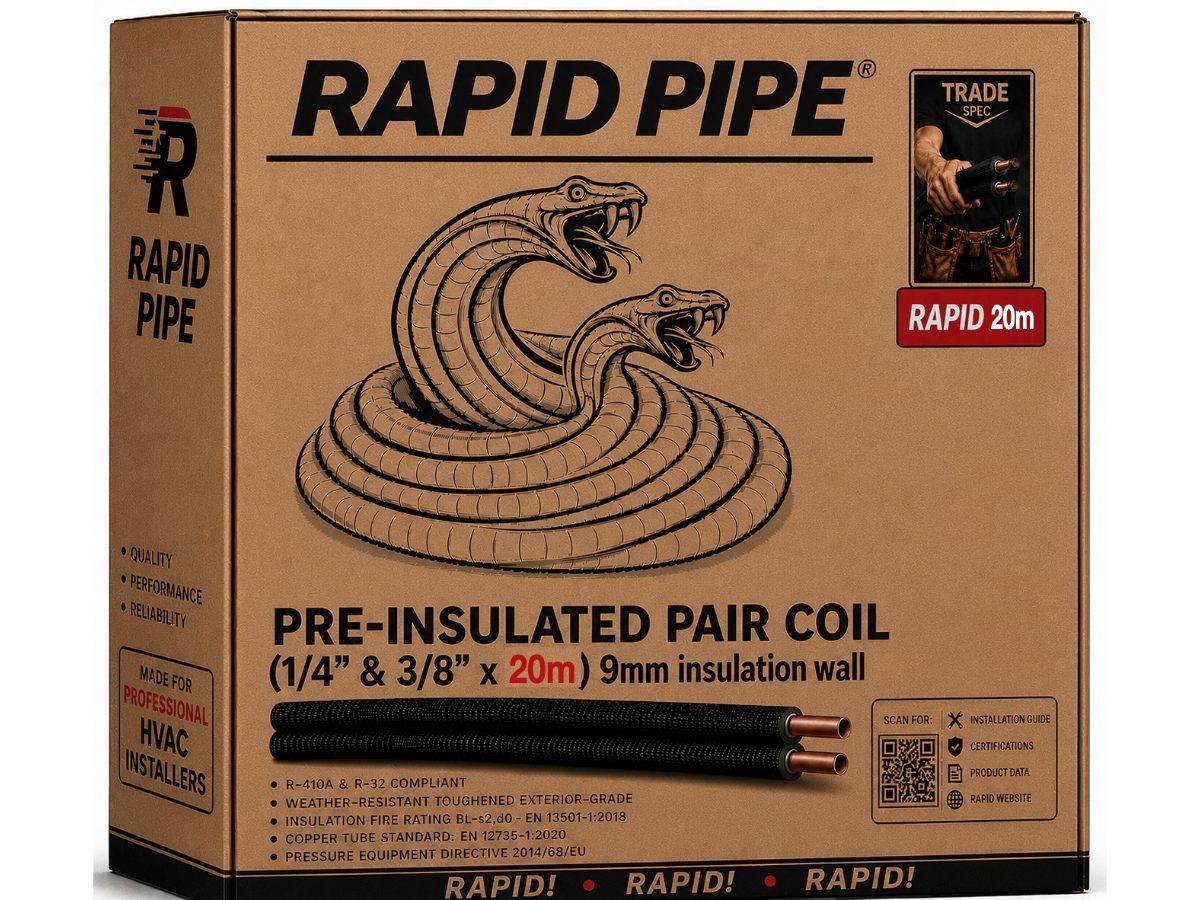

RAPID PIPE boxed pre-insulated pair coil, 1/4" and 3/8" by 20m, 9mm insulation wall
1 / 8 In stock now
Next day delivery Anywhere in the UK on stocked lines.
Collection — open 24/7 1a Rugby Road, TW1 1DG. Held under your order name.
SKU RAP-CU-1438-20

PRO-GRADE
PRE-INSULATED COPPER PIPE
RAPID 20

1/4" + 3/8" — 20M Ask for it by name at the warehouse

Pre-insulated pair coil with a 9mm weather-resistant insulation wall, R-410A and R-32 compliant, ends taped and capped.

Choose your size
£189.00 inc VAT per coil
£157.50 ex VAT In stock 1a Rugby Road, TW1 1DG
How many coils?
1
£189.00 inc VAT total Price band: 1 to 4 coils

Rapid pipe — all sizes

What you get

Datasheet on request
Pipe sizes 1/4" (6.35mm) liquid + 3/8" (9.52mm) suction

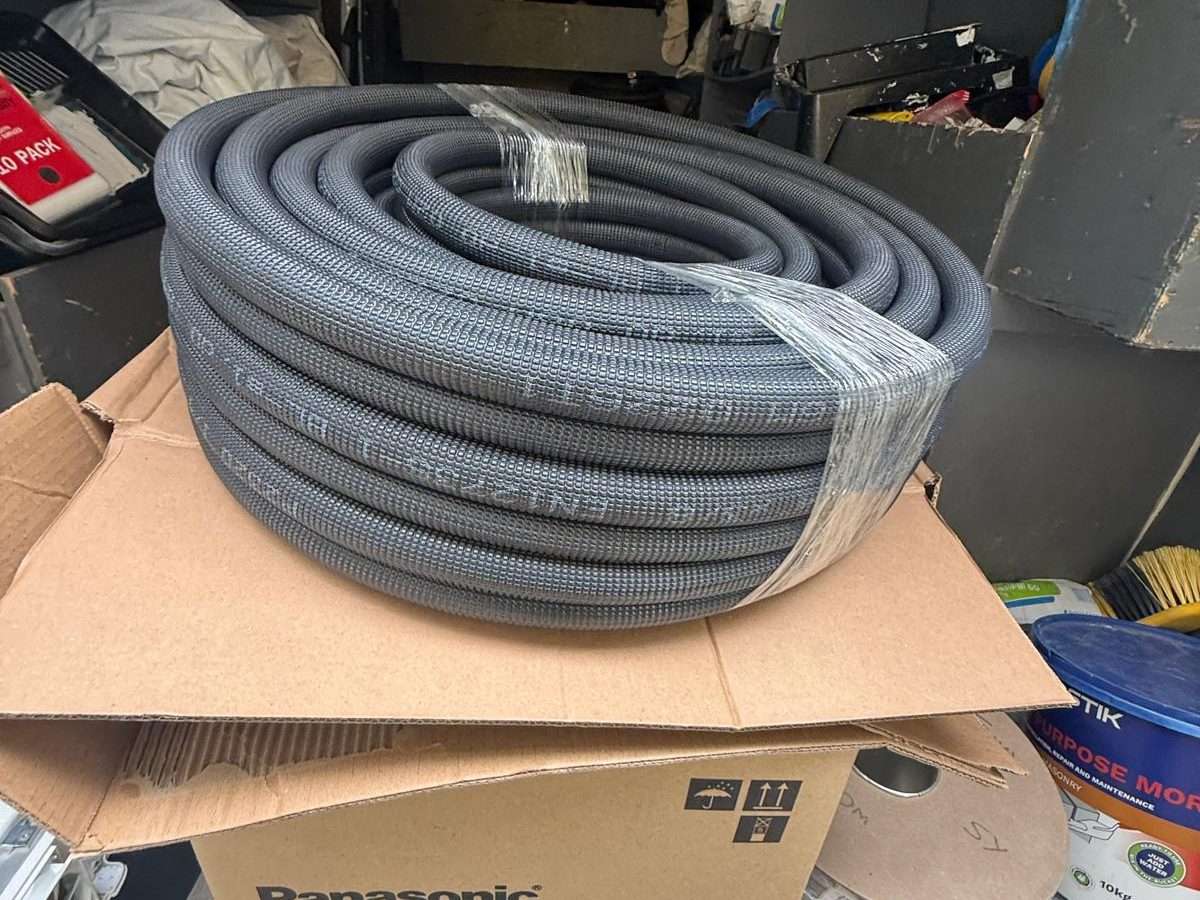

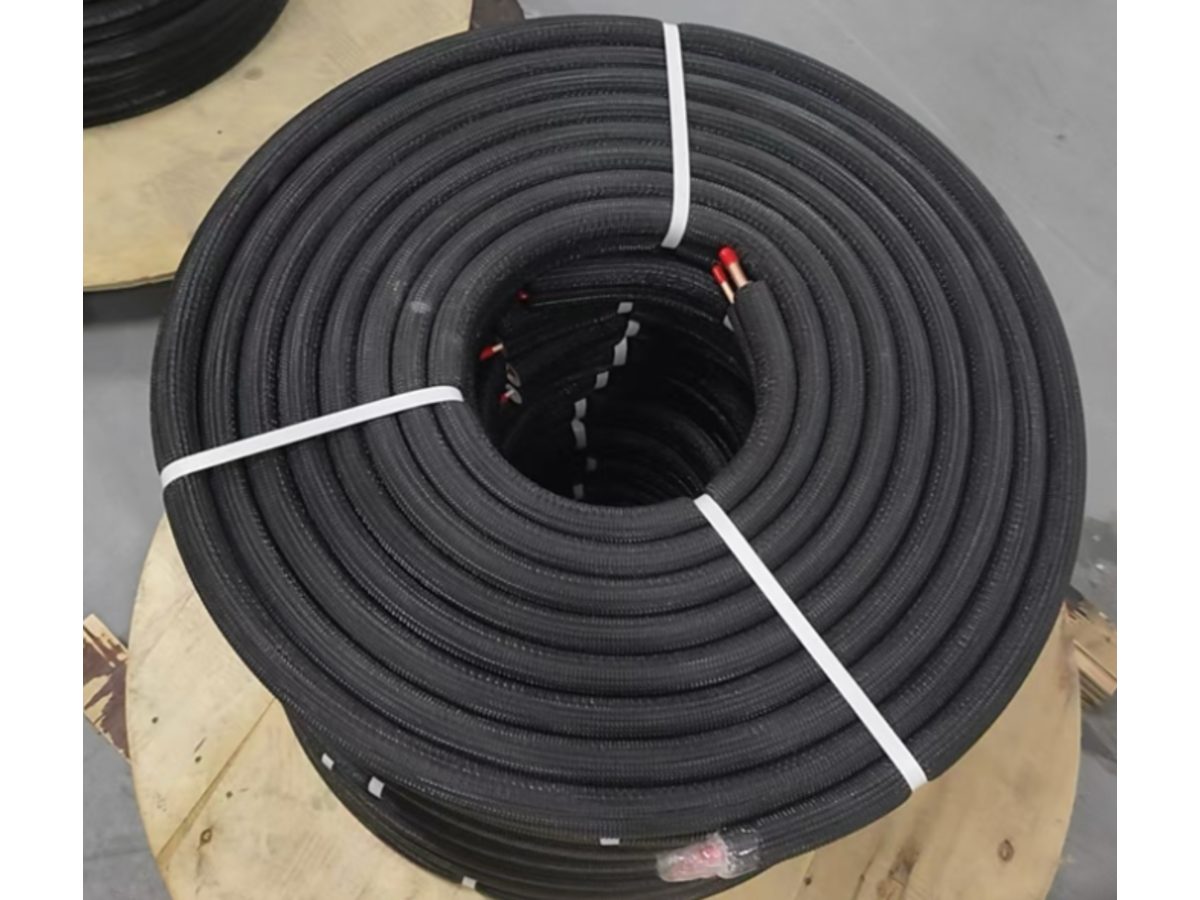

Coil length 20 metres, single continuous coil

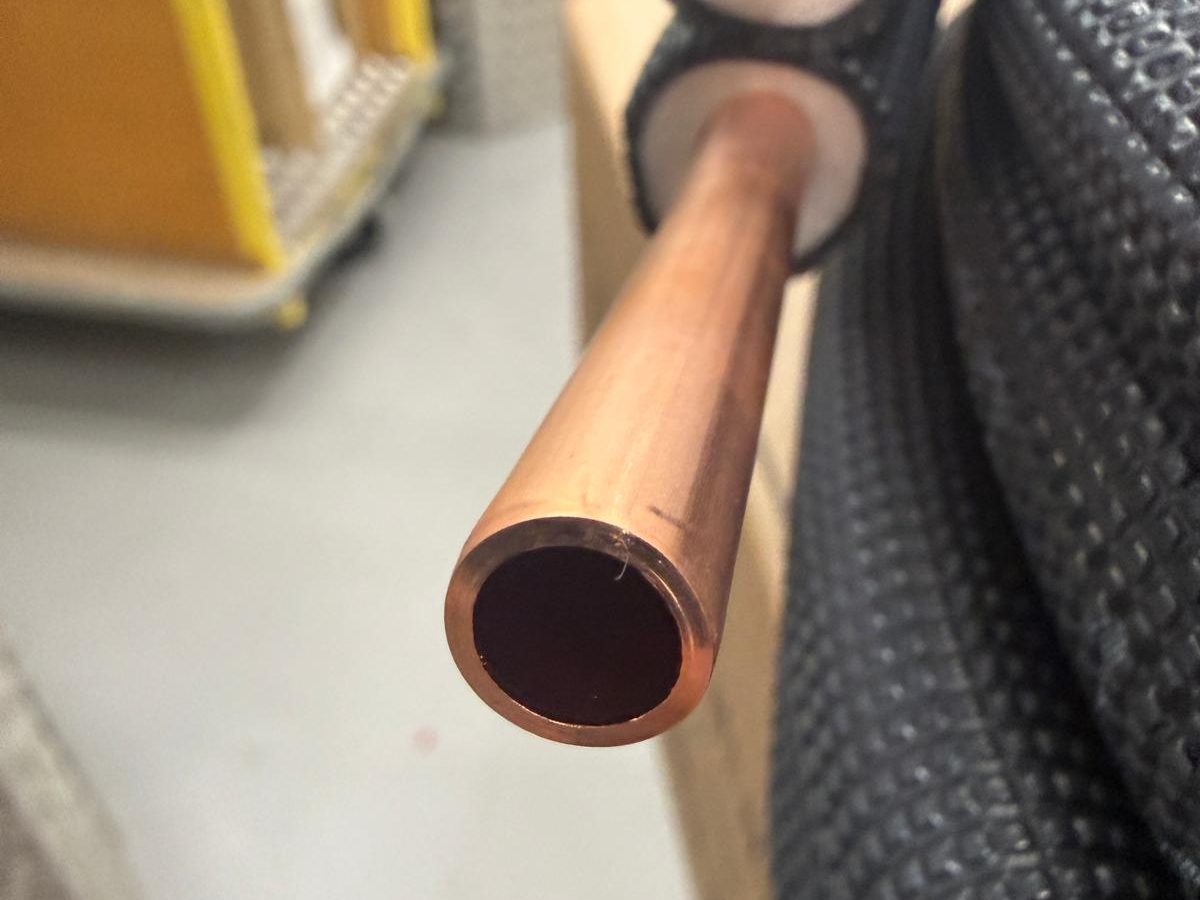

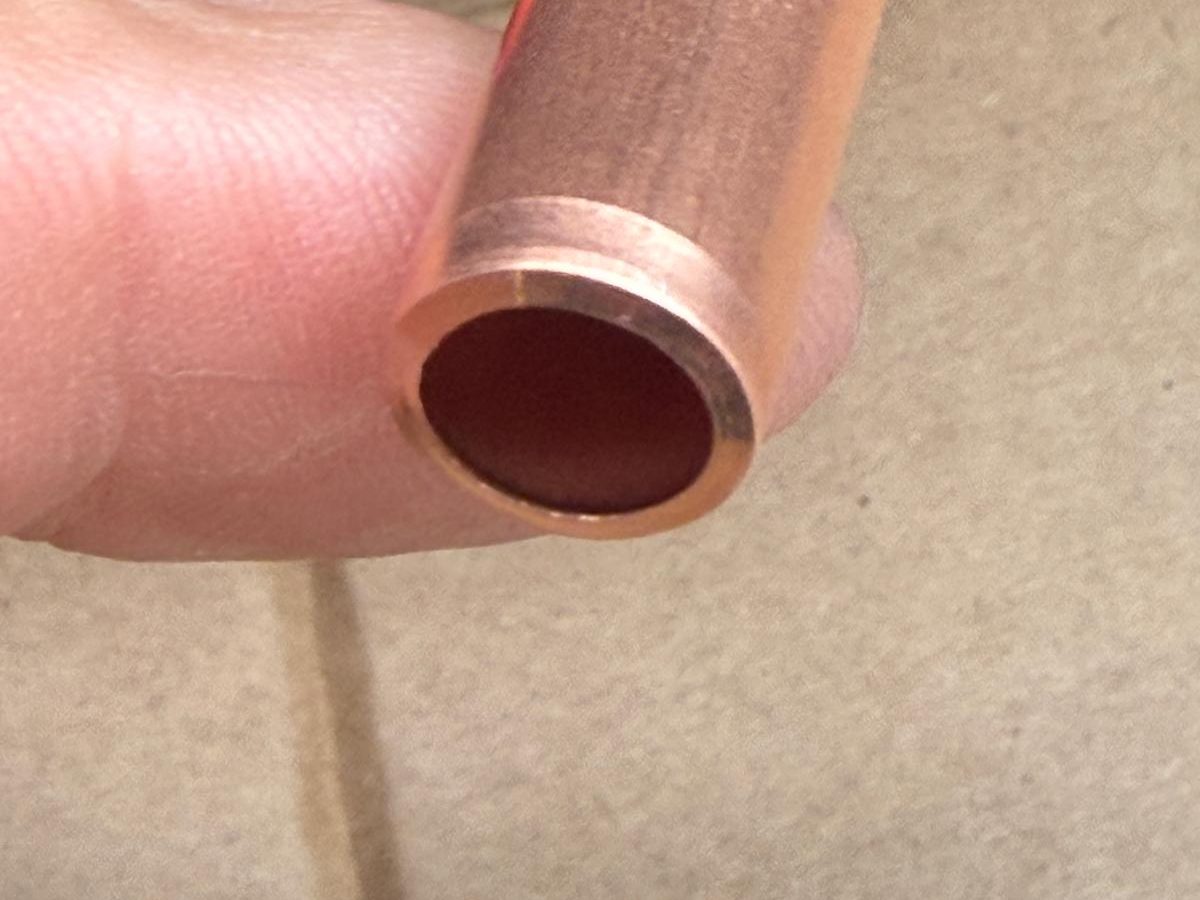

Wall thickness 0.71mm (1/4") · 0.81mm (3/8")
Copper tube standard EN 12735-1:2020, Cu-DHP refrigeration quality
Condition Annealed (R220), degreased and dry internally

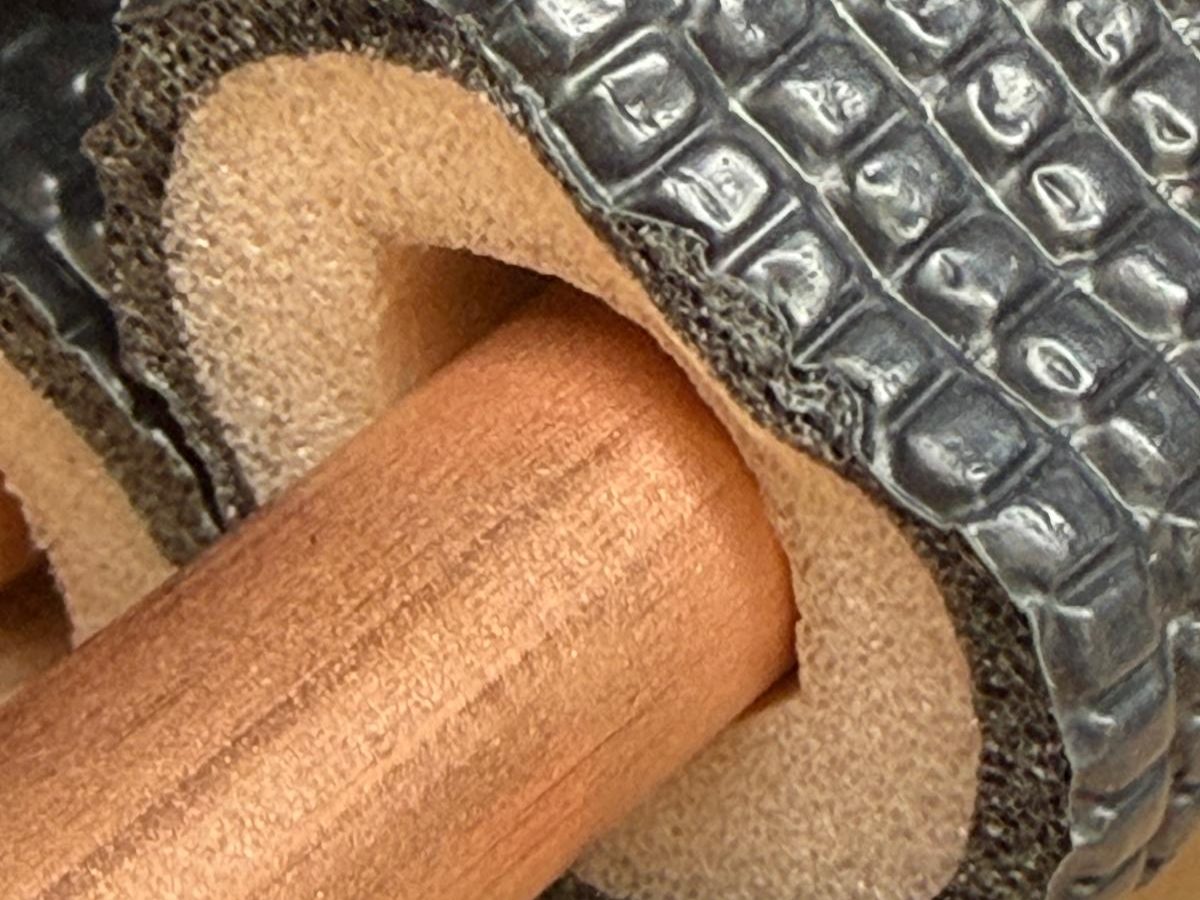

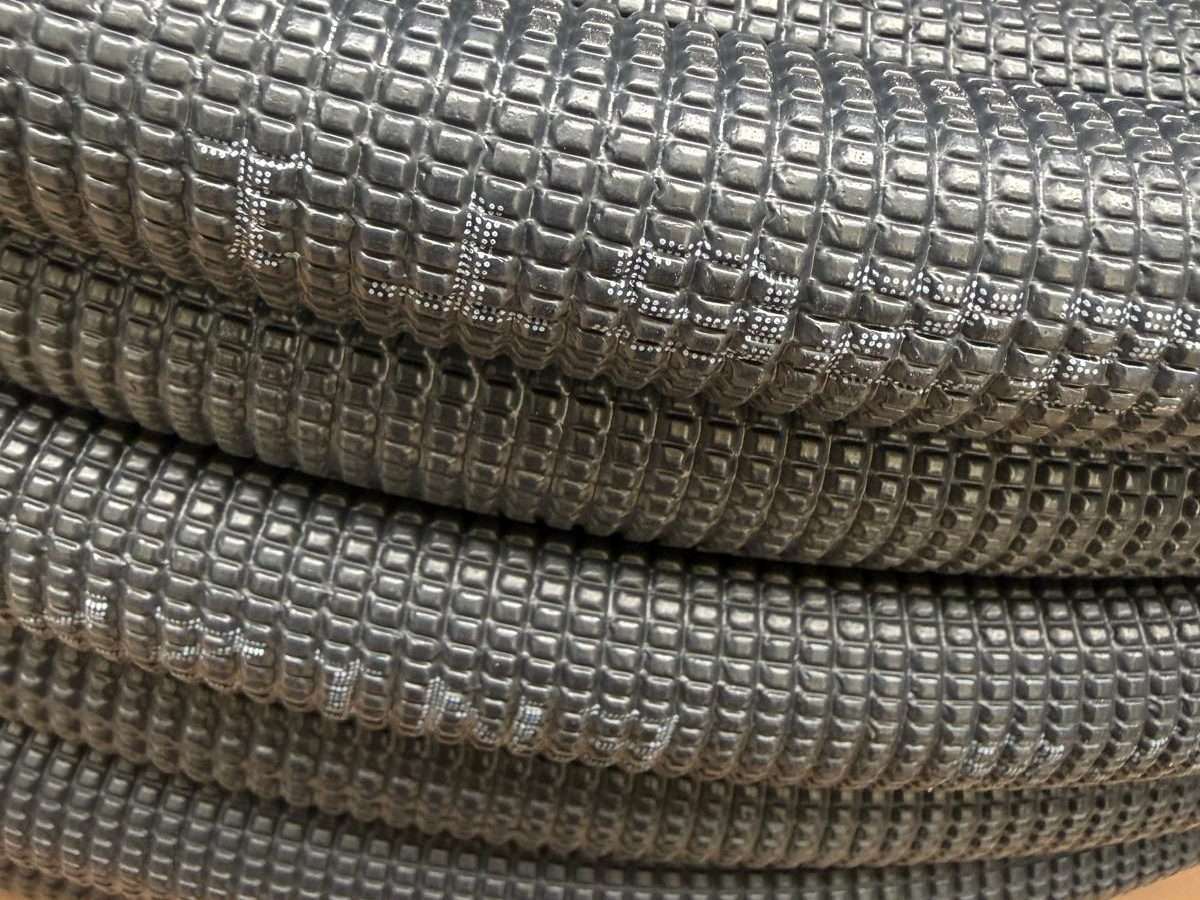

Insulation 9mm wall, weather-resistant exterior grade
Fire rating BL-s2,d0 to EN 13501-1:2018
Refrigerants R-410A and R-32 compliant
Compliance Pressure Equipment Directive 2014/68/EU
Supplied as Taped pair, coil ends capped
Typical use Split systems approx. 2.0–5.0kW

Buy more, pay less

The more coils in one order, the less each one costs.
1 to 4 coils Standard price £157.50 each, ex VAT
5 to 9 coils Save £8.98 on every coil £148.52 each, ex VAT
10 to 19 coils Save £18.11 on every coil £139.39 each, ex VAT
20 or more coils Save £28.98 on every coil £128.52 each, ex VAT
Need a pallet or a special order? Call 07770 800999 or email [email protected].
